Description

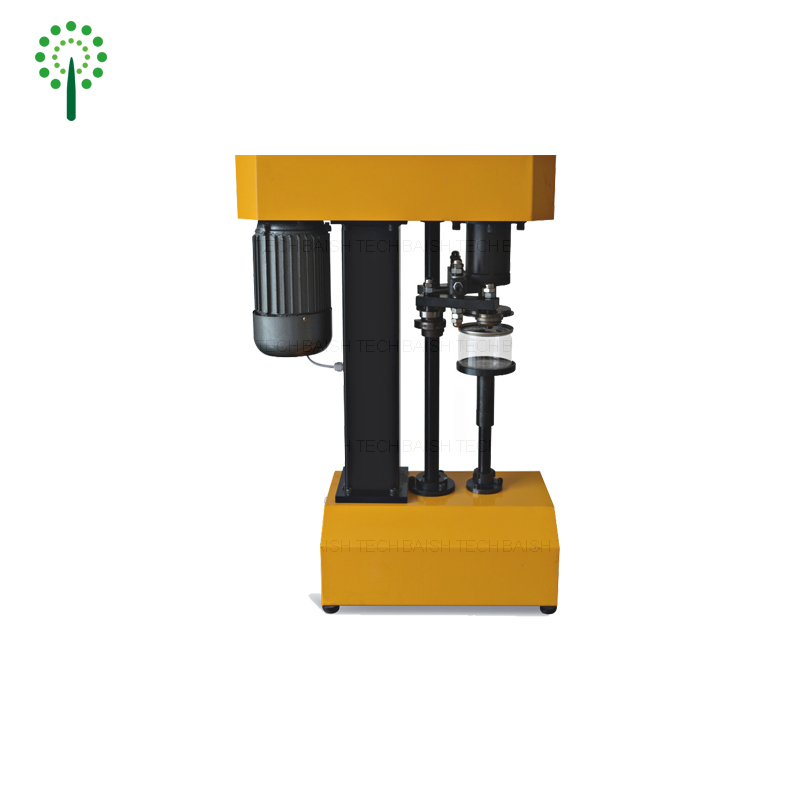

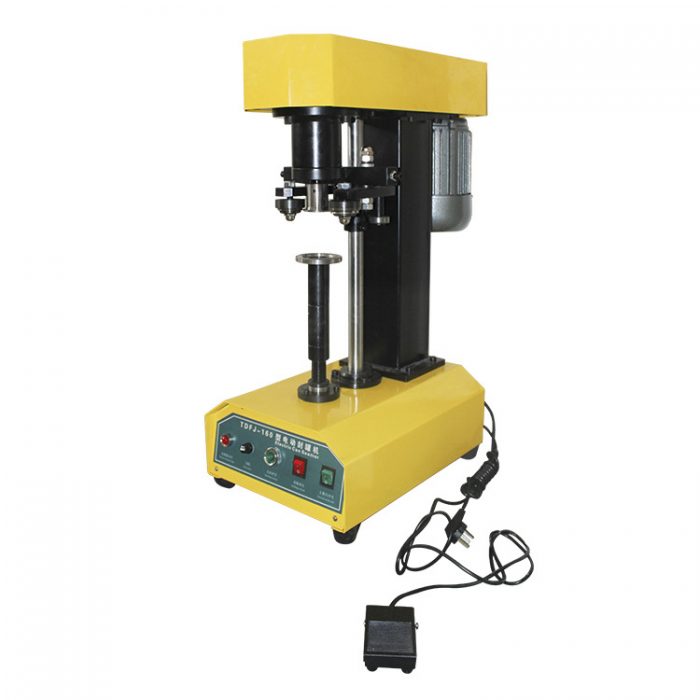

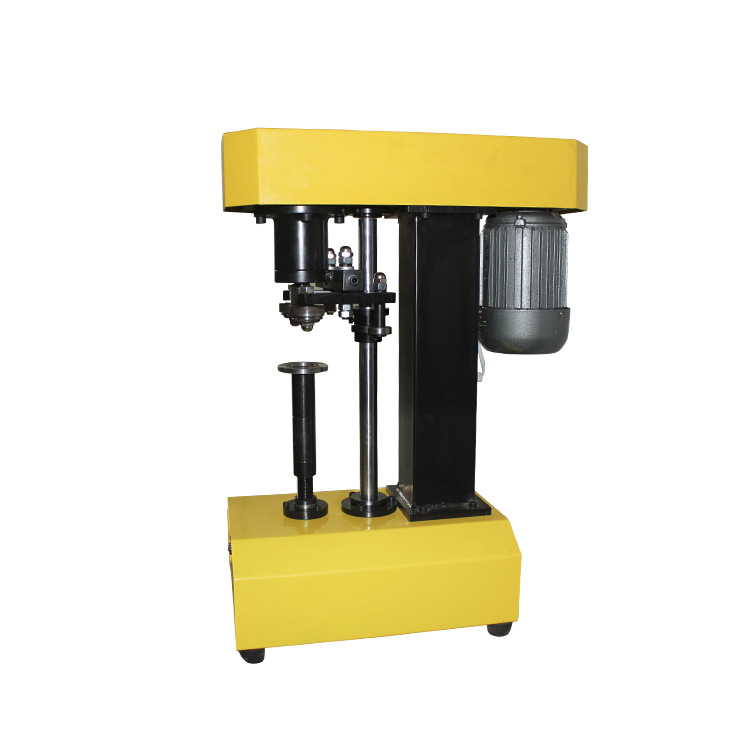

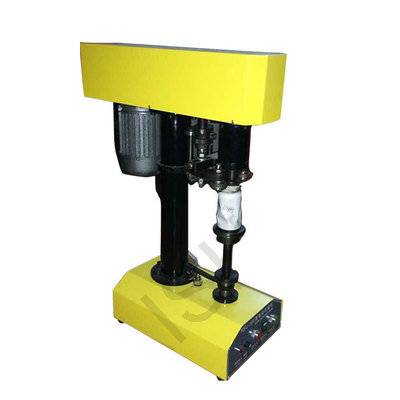

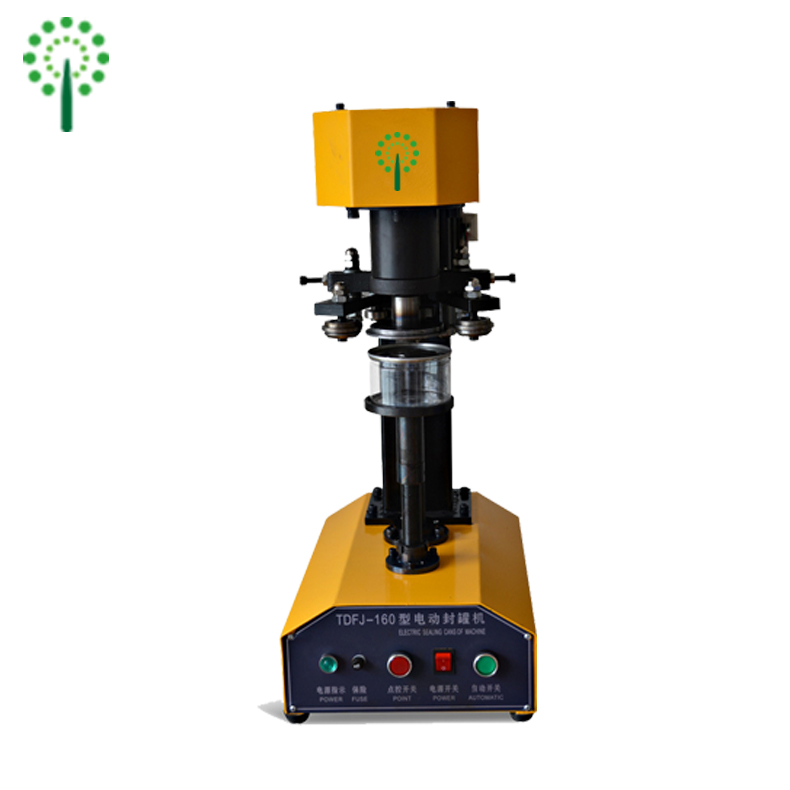

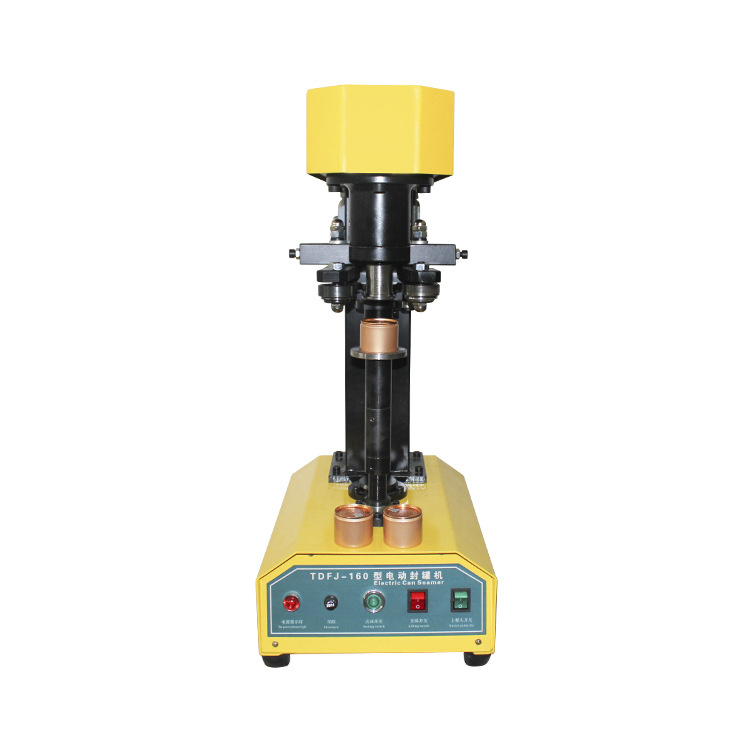

Smartbud tin can sealer, 110v tin can sealing machine

 Suitable for sealing all kinds of circular iron cans, paper can,Iron steel cans,PET plastic cans , glass cans and so on,Quality is reliable, tank mouth ruffled uniform no folds, no leakage.

• Easy Operation and light weight, use the lighting power, a person can complete the operation.

• Compared with the traditional manual sealing machine, the electric sealing machine can greatly improve the efficiency of sealing, reduce the labor intensity of workers, and reduce the bad products caused by human factors, and it is an ideal equipment for food and beverage industry.



 Model  TDFJ160
 Driven type  Electric
 Voltage  AC 220V 50Hz / 110V 60Hz
 Power  370W
 Can diameter  45-110mm (can be customized for bigger size)
 Height of can  39-200mm(can be customized for bigger size)
 Working speed  about 25 pcs/min
 Package size  80*35*94cm
 Gross weight  about 55kg





Operation key step
1. Prepare before starting work:
Check all parts well lubricated.
Check the firmware for loose power cord for damage.
Check the rotation system and the movement mechanism for faults and abnormal sounds.
2. Adjust:
Press the jog slowly adjust switch, rotary screw lift, adjusted to the desired height jar.
To go through the first two road rollers and road rollers roll bar were to be completed, adjust the position of the wheel when seaming, you can get the desired position sealing rollers.
3. Test Sealing:
Start the motor, will install good material covered jar lid.
The jar on the seamer lower die and righting jar.
Confirm jar placed in the correct position, you can step on the pedal point after sealing lid on correctly.
Press the power button to shut down.

  • 【EFFICIENT CAPPING EFFECT】- Can sealing efficiency is improved greatly and it runs more stable thanks to the copper core motor. Suit for product diameter: φ85mm; Suit for cans height: 25-200mm(can adjust according to the tin can size; Production capacity: 12-20 beats/min;
  • 【SUPERIOR CONSTRUCTION】- This semi automatic can capping sealing machine is equipped with strengthening rotation axle. Adjustable stand for different height of cans by adjusting operating lever. Steel construction features durable and anti-corrosion.
  • 【CONCISE OPERATION PROCEDURE】- Easy to operate the cans capping process through the an extremely concise panel and a foot-operated panel.
  • 【ANTI-WEAR HOUSING】- The can sealer adopts an advanced surface treatment: paint technique. It has a good resistance to wear and corrosion.
  • 【WIDE APPLICATION】- Suitable for sealing juice, liquid alcohol, milky tea, skin care, etc., for all kinds of iron, plastic, glass, paper cans.
